Quick Details

  • Material: Steel
  • Diameter: 17.5/19.5/22.5/24.5inch
  • Finishing: Sliver or as your request
  • Hole: 6, 8, 10
  • PCD: 121-525mm
  • ET: -12.7-172mm
  • Car Make: Truck and bus
  • Width: 6-14inch
  • Brand Name: TNR
  • Place of Origin: Shandong, China (Mainland)
  • Model Number: Wheel Rim
  • Weight: 22-56.5kg
  • Color: Sliver,blue,or as your request
  • Item: Big tubeless series
  • Quality: RELIABLE
  • Certification: TUV ECE DOT

Packaging & Delivery

Packaging Details: in pallet,or upon customers' request
Delivery Detail: Shipped in 30 days after payment



Product Description

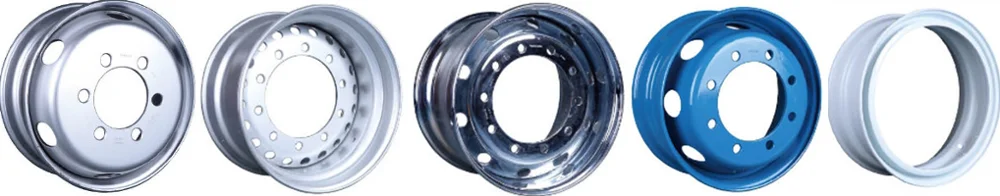

BIG TUBELESS  WHEEL RIM fit for TRUCK AND  BUS TIRE

17.5"/19.5"/22.5"/24.5"

Other sizes are avaliable



 17.5" :17.5×6.00  17.5×6.75

 Model    Offset   Center        Bore       Bolt hole      PCD   Valve    Matched Tyre  Thickness
17.5×6.00118Φ164       6-Φ32.5   Φ222.25  V3-20-48R17.510mm
17.5×6.00120Φ150       5-Φ32.5   Φ207.8  V3-20-48R17.510mm
17.5×6.00124Φ176       10-Φ26  Φ225  V3-20-48R17.512mm
17.5×6.00125Φ161       6-Φ24  Φ222.25  V3-20-48R17.510mm
17.5×6.00127Φ164       6-Φ32.5   Φ222.25  V3-20-48R17.510mm
17.5×6.00135Φ176       10-Φ26  Φ225  V3-20-48R17.512mm
17.5×6.00135Φ164       6-Φ32.5   Φ222.25  V3-20-48R17.510mm
17.5×6.00118Φ150       5-Φ32.5   Φ207.8  V3-20-48R17.510mm
17.5×6.752Φ121       8-Φ17  Φ165  TR5009R17.510mm
17.5×6.758Φ121       8-Φ15.8  Φ165  TR5009R17.511mm
17.5×6.75135Φ161       6-Φ24  Φ222.25  V3-20-79R17.512mm
17.5×6.75141Φ221       8-Φ25.4   Φ275 TR572-I189R17.511mm
17.5×6.75145Φ176       10-Φ26   Φ225TR572-F199R17.512mm
17.5×6.75155Φ165.1       10-Φ32   Φ222.25TR572-G199R17.511mm
17.5×6.75137Φ164       6-Φ32.5   Φ222.25V3-20-79R17.512mm
17.5×6.75-12.7Φ121       8-Φ15.8  Φ165TR5009R17.511mm





19.5" :19.5.5×6.00  19.5×6.75  19.5×7.5 19.5×8.25   19.5×14.00



 Model    Offset  Center         Bore       Bolt hole  PCD    Valve    Matched Tyre Thickness
19.5×6.00135Φ164       6-Φ32.5 Φ222.25V3-20-48R19.512mm
19.5×6.75140Φ164       6-Φ32.5 Φ222.25V3-20-119R19.512mm
19.5×7.50150Φ221       8-Φ26Φ275V3-20-11245/70R19.511mm
19.5×8.25160Φ221       8-Φ26 Φ27558MS285/70R19.512.25mm
19.5×14.000Φ281      10-Φ26Φ335TR575435/50R19.512.25mm



 More specification about 19.5 inch click here







   22.5":22.5×6.00  22.5×6.75  22.5×7.5  22.5×8.25  22.5×9.00                    22.5×9.75 22.5×11.75    22.5×13.00   22.5×14.00



 Model    Offset  Center         Bore       Bolt hole    PCD    Valve    Matched TyreThickness
22.5×6.00133Φ2148-Φ32.5 Φ275V3-20-48R22.512mm
22.5×6.75146.5Φ2148-Φ32.5 Φ275V3-20-49R22.513.5mm
22.5×7.50152Φ22010-Φ26Φ285.75V3-20-410R22.513.5mm
22.5×8.25154Φ28110-Φ26Φ335V3-20-6B11R22.515.5mm
22.5×9.00175Φ2218-Φ32.5 Φ285V3-20-612R22.513.5mm
22.5×11.750Φ28110-Φ26Φ33558MS385/65R22.512.75mm
22.5×13.000Φ28110-Φ26Φ335TR500445/65R22.512.25mm
22.5×14.000Φ22010-Φ26Φ285.75TR500445/65R22.512.25mm



  More specification about 22.5 inch click here




   22.5":24.5×8.25




 Model    Offset   Center          Bore      Bolt hole   PCD    Valve    Matched TyreThickness
24.5×8.25168Φ2218-Φ32.5 Φ285TR573-E2411R24.513.5mm
24.5×8.25168Φ22010-Φ26Φ285.75TR573-E2411R24.512.75mm
24.5×8.25168Φ22110-Φ32 Φ285.75TR573-E2411R24.512.75mm
24.5×8.25168Φ22010-Φ26Φ285.75TR573-E2411R24.512.25mm
24.5×8.25168Φ28110-Φ26Φ335TR573-E2411R24.513.5mm
24.5×8.25168Φ22010-Φ26Φ285.75TR57311R24.511mm
24.5×8.25168Φ22110-Φ32.5 Φ285.75TR573-E2411R24.512mm
24.5×8.25168Φ22010-Φ26Φ285.75TR573-E2411R24.512mm





Design:

ETRTO(for Europe),

TRA(for North America),

JATMA(for Japan)

Packaging & Shipping

 Packaging details:in pallets

Delivery     details:Immediately in stock



Company Information



TNR International Company Limited is located in Shanghai, China, and has business all over the world, covering major countries in Central Europe, Scandinavia, Northern America, South America, East Asia, Middle East, and Africa etc.

FAQ

Q1. What is your terms of payment?

A: T/T 30% as deposit, and 70% against b/l copy. Or by irrevocable LC at sight.

Q2. How about your delivery time?

A: For regular products, we make IMMEDIATE Shipment for new stock.

For new production, it takes about 30days after receiving advance payment. The specific delivery time depends on the items and the quantity of your order, please consult our sales.

Q3. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings.

Q4. What is your sample policy?

A: We can supply the sample if we have ready tires in stock, but the customers have to pay the sample cost and the courier cost.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery, and all the tires meet the target market regulations.

Q6: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
